Single Phase Starters
SMC Single Phase Panel
Single Phase Submersible Control Panel
- HSN CODE : 85365090
| HP | CONTACTOR | Capacitor Start (mfd) / Run (mfd) |
MCB RANGE | MRP | |
|---|---|---|---|---|---|
| Start (mfd) | Run (mfd) | ||||
| 1 HP | 16 Amp. | 80-100 | 50 | 16 Amp. | 3290 |
| 1.5 HP | 16 Amp. | 100-120 | 72 | 20 Amp. | 3550 |
| 2 HP | 25 Amp. | 120-150 | 90 | 25 Amp. | 3821 |
| 3 HP | 25 Amp. / 4 Pole | 150-200 | 105 | 32 Amp. | 4516 |
- Standard Packing: 8 pcs.
SMC Single Phase Panel Specification:
Single Phase Submersible Control Panel, Digital Volt & Amp. Meter, Heavy Duty Two Pole Contractor, C-Type MCB For Overload & Short Circuit Protection, Powder Coated Sheet Metal Enclosure.

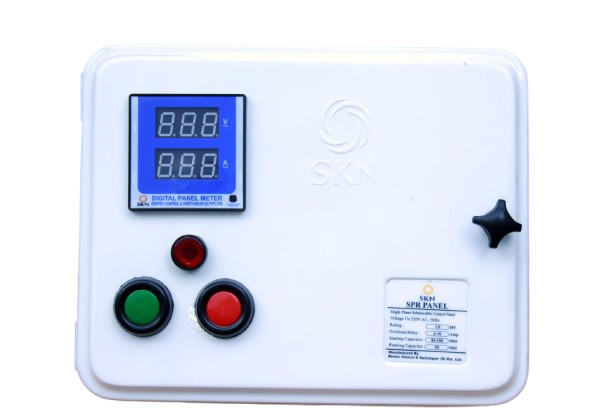

SPR Single Phase Panel
Single Phase Submersible Control Panel
- HSN CODE : 85371000
| HP | CONTACTOR | Capacitor | RELAY RANGE | MRP | |
|---|---|---|---|---|---|
| Start (mfd) | Run (mfd) | ||||
| 1 HP | 16 Amp. | 80–100 | 50 | 6–10 Amp. | 3290 |
| 1.5 HP | 20 Amp. | 100–120 | 72 | 9–14 Amp. | 3590 |
| 2 HP | 25 Amp. | 120–150 | 90 | 13–21 Amp. | 3965 |
| 3 HP | 25 Amp. / 4 Pole | 150–200 | 105 | 20–32 Amp. | 4490 |
- Standard Packing: 8 pcs.
SPR Single Phase Panel Specification:
Single Phase Submersible Control Panel, Digital Volt & Amp. Meter, Heavy Duty Two Pole Contractor, C-Type MCB For Overload & Short Circuit Protection, Powder Coated Sheet Metal Enclosure.

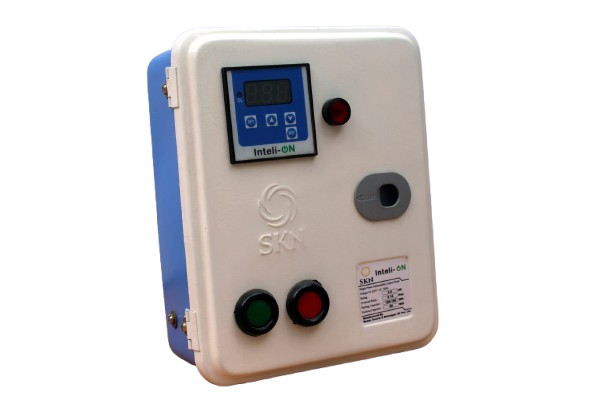

INTELI-ON Single Phase AC Panel
INTELI-ON Single Phase Submersible Smart Control Panel
- HSN CODE : 85371000
| HP | KW | MOTOR CURRENT | Capacitor | RANGE | MRP | |
|---|---|---|---|---|---|---|
| Start (mfd) | Run (mfd) | |||||
| 1 HP | 0.75 | 6 | 80–100 | 50 | 6–10 Amp. | 3519 |
| 1.5 HP | 1.125 | 9 | 100–120 | 72 | 9–14 Amp. | 3880 |
| 2 HP | 1.5 | 12 | 120–150 | 90 | 13–21 Amp. | 4090 |
| 3 HP / 4 Pole | 2.25 | 18 | 150–200 | 105 | 20–32 Amp. | 5240 |
| 5 HP / 4 Pole | 3.75 | 30 | 200–250 | 105 + 72 | 28–42 Amp. | 5990 |
- Standard Packing: 8 pcs.
INTELI-ON Single Phase AC Panel Specification:
Single Phase Submersible Control Panel, Digital Volt & Amp. Meter, Digital Overload Relay, Dry Run Protection, Digital Error Indication, High & Low Voltage Protection, Short Circuit Protection, Off Delay Timer, Heavy Duty Contractor, Powder Coated Sheet Metal Enclosure.
Key Features:
- Adjustable Overload & High & Low Voltage Protection
- Adjustable Digital Overload & Dry Run Tripping
- Code Error Indicates For High/Low Voltage, Dry Run & Overload Condition
- Adjustable Off Timer
- User Friendly
- Easy Installation
